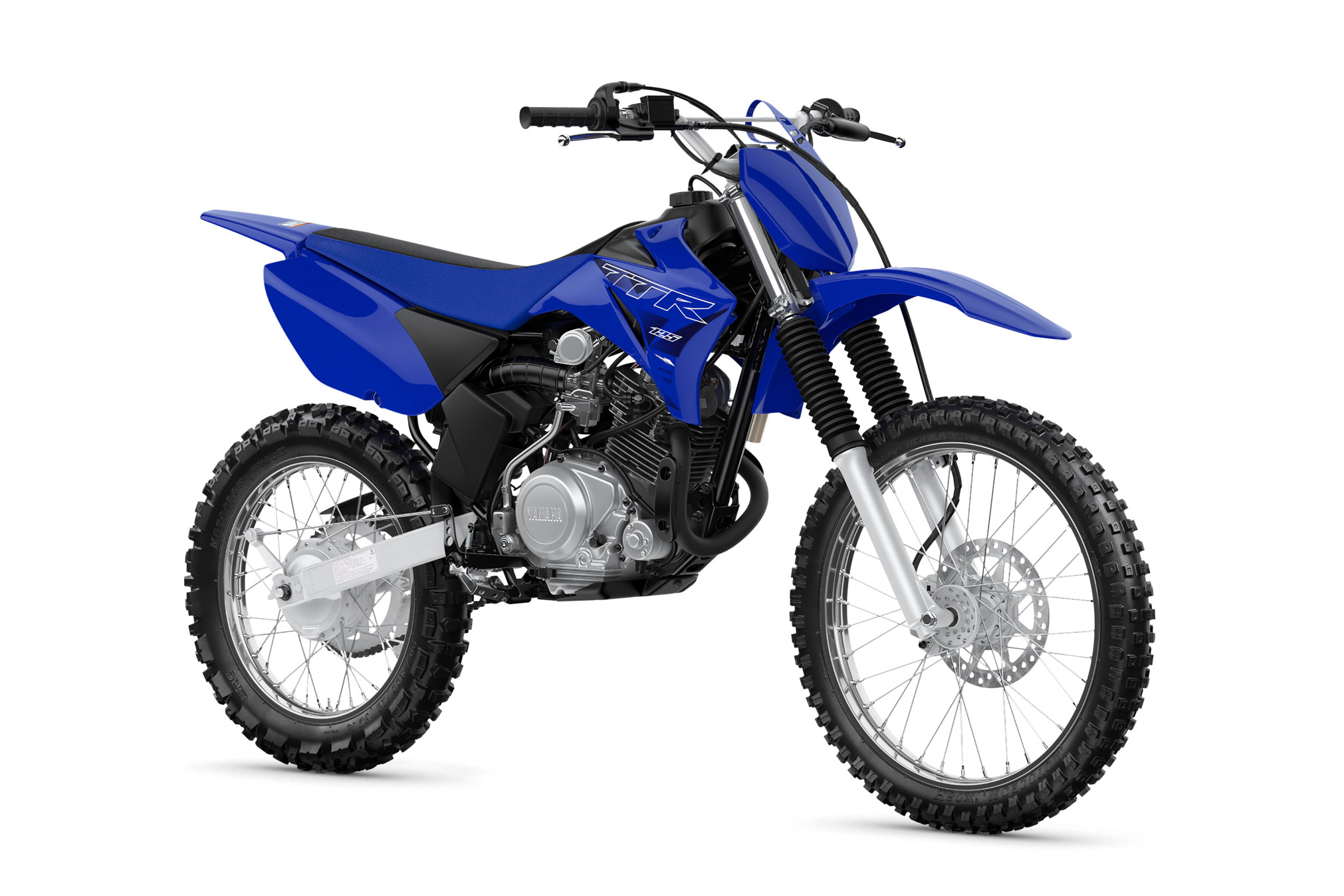

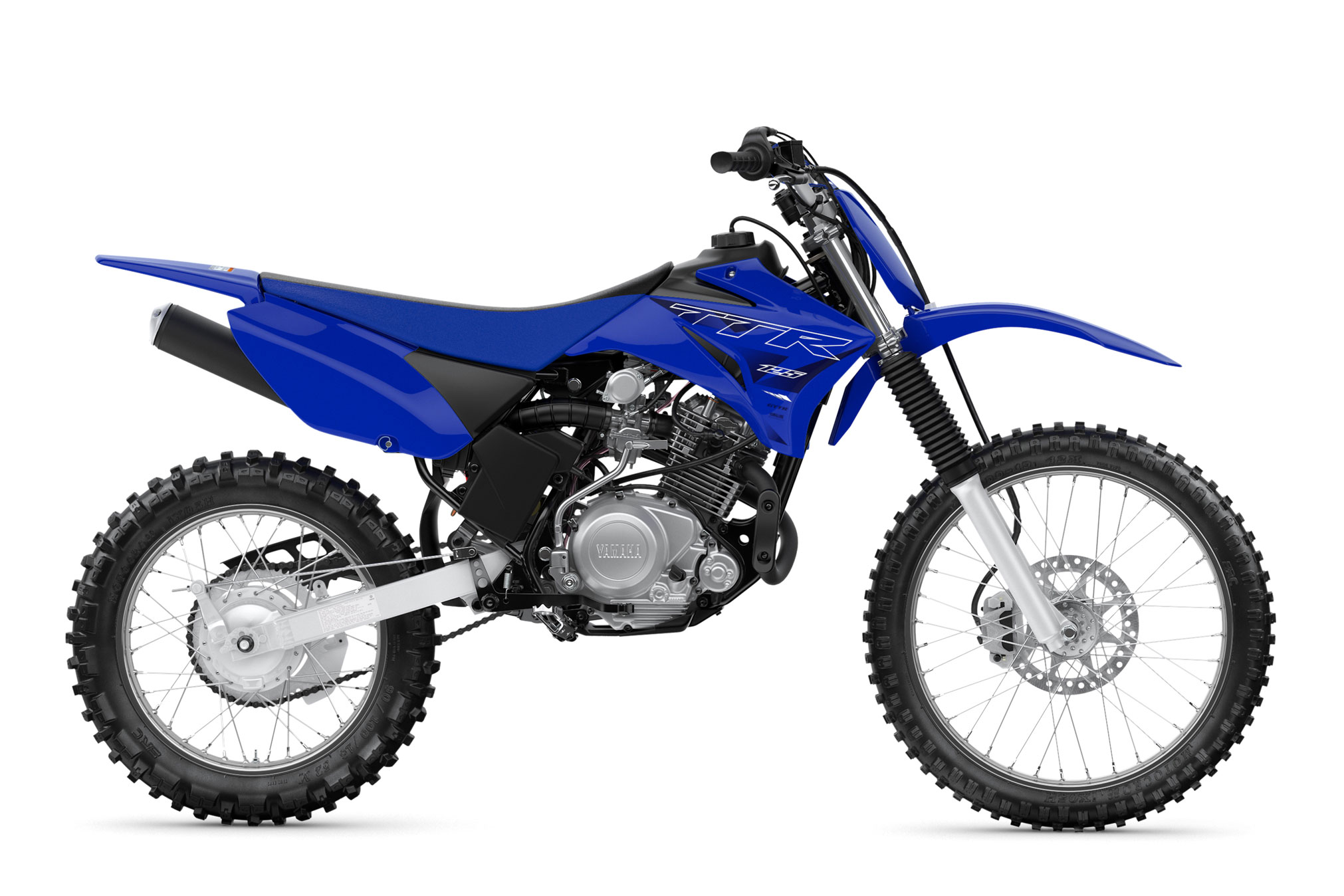

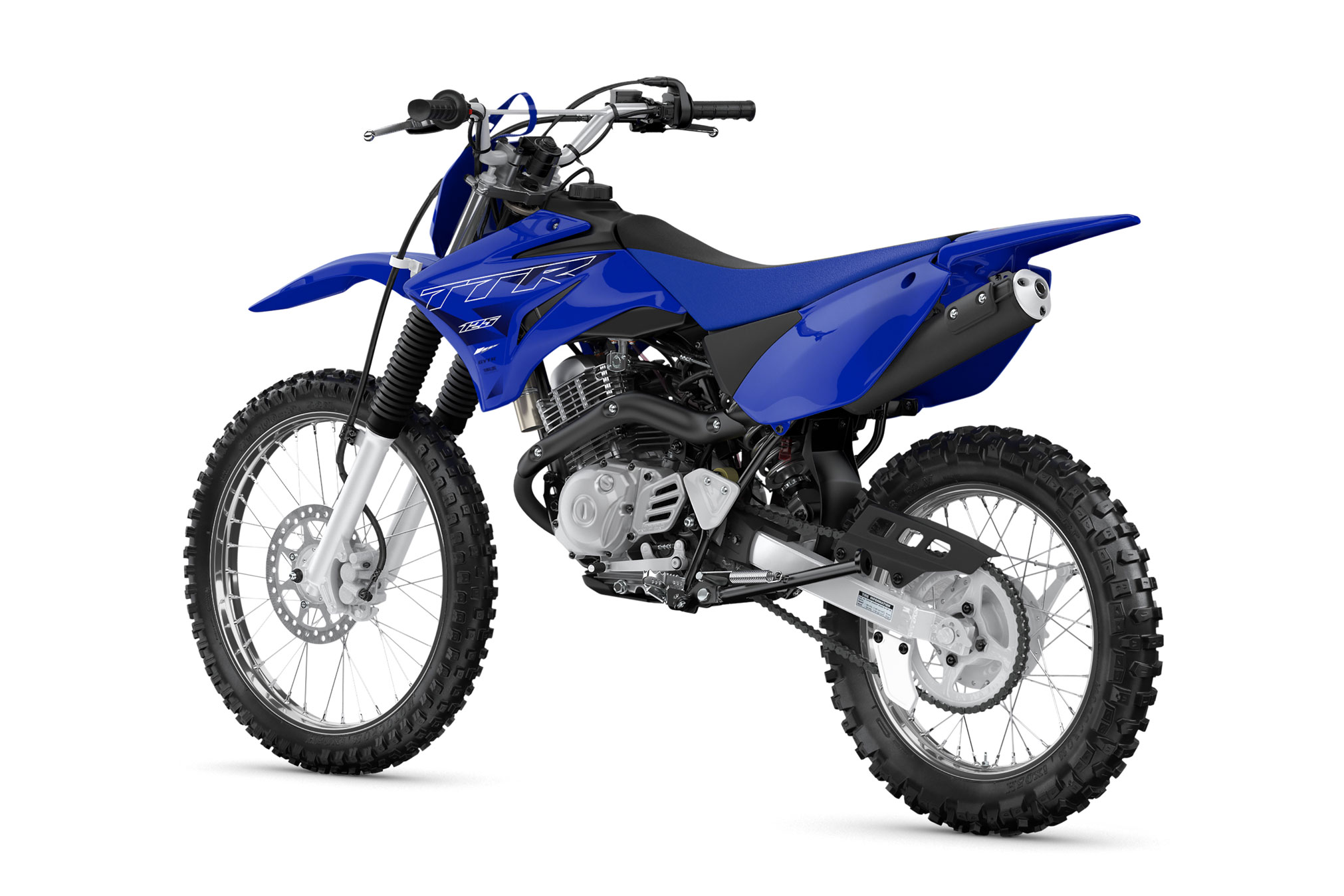

2022 Yamaha TT-R125LE: FUN FOR ONE. FUN FOR ALL.
Introducing the new 2022 Yamaha TT-R125LE…
A versatile off‑road bike that’s perfect for discovering the fun and freedom of trail riding.
There’s no better way to build confidence than with a TT-R! Designed with new riders in mind, the TT-R125LE features lightweight construction, electric start and smooth, predictable power delivery.
2022 Yamaha TT-R125LE Totalmotorcycle.com Key Features
- Accessible Performance
Big fun for the whole family, the YZ-styled, four-stroke-powered TT-R125LE begs to be ridden by everyone from bigger kids to adults. - Low Seat Height
A seat height of less than 32 inches positions this bike to be accessible to most riders, while the 11-plus inches of ground clearance and long-travel suspension at both ends make it a serious trail bike as well. - Full-Featured Performance
The TT-R125LE features push-button electric start, 19-inch and 16-inch wheels for great handling, an aluminum swingarm, adjustable suspension calibrated for aggressive and/or bigger riders, and 220mm front disc brake.
2022 Yamaha TT-R125LE Totalmotorcycle.com Features and Benefits
ENGINE
- Torque-Rich Engine
Potent 124cc air-cooled SOHC four-stroke powerplant puts out torquey, broad power tuned for off-road performance in a wide range of trail conditions. - Responsive Power
Crisp, dependable throttle response from the 20mm Mikuni® carburetor. - 5-Speed Transmission
Smooth-shifting, five-speed transmission with heavy-duty clutch is geared for maximum versatility and usable power delivery. - Digital Ignition
CDI ignition system is ultra-reliable and never needs maintenance. - Low Maintenance Engine
Automatic cam chain tensioner means minimal maintenance and longer engine life. - Easy Serviceability
Easy-access, tool-free air filter adds extra convenience during maintenance. - Forest-Friendly Exhaust
The lightweight exhaust system features quiet, USFS-approved spark arrestor.
CHASSIS/SUSPENSION
- Robust, Compact Frame
Rigid frame design features a long wheelbase to accommodate bigger riders while maintaining quick, agile off-road handling. - Trail-Ready Front Fork
A 31mm telescopic front fork with 7.1 inches of travel has preload adjustability for plush, confidence-inspiring control over rough terrain. - Advanced Rear Suspension
The single rear shock features compression and the rebound damping adjustability with 6.6 inches of travel for predictable handling and control. - Nimble Wheels and Tires
Big 19-inch front and 16-inch rear wheels on the 125LE offer great handling and all-terrain ability with sharp, predictable steering. - Lightweight Swingarm
TT-R125LE features a lightweight aluminum box-section swingarm with snail-type chain adjusters for reduced unsprung weight and optimum suspension performance. - Powerful Braking
Front rotor and rear drum brakes deliver strong, dependable stopping power. - Durable Knobby Tires
Knobby tires offer superb grip and exceptional wear.
ADDITIONAL FEATURES
- Low Seat Height
The long, YZ-style seat is low and comfortable and allows easy rider movement with a gripper-style to aid in seat-of-the-pants feel. - Racing Style
Team Yamaha-inspired colors and graphics and front and side number plates are styled like the competition YZ lineup, while the sleek, narrow fuel tank creates a big-bike look and feel. - Grippy Foot Pegs
Large folding, cleated foot pegs provide excellent footing, even in wet or muddy conditions. - Fork Protection
Durable fork boots ensure excellent fork seal and stanchion tube protection.
2022 Yamaha TT-R125LE – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3349 USD
Canada MSRP Price: $4299 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Bore x Stroke 54.0mm x 54.0mm
Compression Ratio 10.0:1
Fuel Delivery Mikuni® VM20 carburetor
Ignition CDI
Transmission Constant-mesh 5-speed; multiplate wet clutch
Final Drive Chain
Suspension / Front 31mm telescopic fork, adjustable preload; 7.1-in
travel
Suspension / Rear Single shock, adjustable compression and
rebound; 6.6-in travel
Brakes / Front Hydraulic single disc, 220mm
Brakes / Rear Drum, 110mm
Tires / Front 70/100-19
Tires / Rear 90/100-16
L x W x H 74.2 in x 31.3 in x 42.7 in
Seat Height 31.7 in
Wheelbase 50.0 in
Rake (Caster Angle) 28.5°
Trail 4.2 in
Maximum Ground
Clearance
11.6 in
Fuel Capacity 1.6 gal
Fuel Economy n/a
Wet Weight 198 lb
Warranty 90 Day (Limited Factory Warranty)
Color Team Yamaha Blue
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.
2022 Yamaha TT-R125LE – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
ENGINE 4-stroke, air-cooled, SOHC, 2-valve, single
DISPLACEMENT 124cc
BORE AND STROKE 54 x 54mm
COMPRESSION RATIO 10:1
MAXIMUM TORQUE 1kg-m (7.3 ft-lb)@ 6,500 rpm
FUEL DELIVERY Mikuni VM20
IGNITION / STARTING CDI / Electric & kick
TRANSMISSION Constant mesh, 5-speed
FINAL DRIVE Chain
CHASSIS
SUSPENSION (FRONT) Adjustable 31mm fork / 180mm (7.1″) wheel travel
SUSPENSION (REAR) Adjustable link-type Monocross / 168mm (6.6″) wheel travel
BRAKES (FRONT) 220mm disc / twin piston caliper
BRAKES (REAR) Drum
TIRES (FRONT) 70/100-19
TIRES (REAR) 90/100-16
CRITICAL DATA
LENGTH 1,900 mm (74.8″)
WIDTH 795 mm (31.3″)
HEIGHT 1,085 mm (42.7″)
WHEELBASE 1,270 mm (50″)
GROUND CLEARANCE 295 mm (11.6″)
SEAT HEIGHT 805 mm (31.7″)
FUEL CAPACITY 6 litres (1.3 imp. gallons)
WET WEIGHT 90kg (198 lb)
COLOUR(S) Yamaha Racing Blue
2022 Yamaha TT-R125LE – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
