Big-Inch Milwaukee-Eight 117 Custom Motor. The most displacement you can get in a factory-installed, regular-production Harley-Davidson powertrain. Torque-rich, smooth-running, and made to move.
Review – Key Features – Features & Benefits – Specifications
2026 Harley-Davidson Breakout: BREAK OUT OF THE EVERYDAY.
Introducing the 2026 Harley-Davidson Breakout…
The Breakout brings the attitude of a custom build and the ease of a factory bike home to your garage. Leave the hassle at the swap meet.
Why Blend in When You Can Break Out?
With 34 degrees of rake in the neck, a bobtail fender, and a 240mm rear tire, the 2026 Breakout feels like a factory-built street sweeper. But don’t get lost in the long-and-low chopper lore. This bike also offers USB-C charging, Rider Safety Enhancements standard, a monster Milwaukee-Eight 117 Custom, two new paint options, and much more.
“This bike is a new experience for me. I found a factory bike that fit my style instead of having to build one myself, and it brings a smile to my face whenever I walk into my garage.”
2026 Harley-Davidson Breakout Totalmotorcycle.com Key Features
- 103 HP Horsepower
- 25.6 in. Seat Height, Laden
- 126 ft-lbs Engine Torque
- 49 mpg Fuel Economy
Big-Inch Milwaukee-Eight 117 Custom Motor
The most displacement you can get in a factory-installed, regular-production Harley-Davidson powertrain. Torque-rich, smooth-running, and made to move.
300mm Front Disc + 21” Wheel
A single 300mm disc brake delivers confident stopping power while keeping the lines clean on that tall, bold 21” front wheel.
Boldly Profiled 240mm Rear Tire
A massive 240mm rear tire plants the Breakout’s stance and delivers confidence that feels as solid as it looks.
4” Analog Gauge + Customizable Ride Modes
A clean 4-inch analog gauge with a built-in digital display delivers the info you need without clutter, keeping the view as sharp as the rest of the Breakout. Road, Rain, and Sport ride modes adjust throttle response and traction settings to match how and where you ride, giving you quick tuning that keeps it feeling exactly the way you want.
5.75” LED Headlamp + LED Turn Signals
Bright, clean, and impossible to ignore. A 5.75” LED headlamp lights your line, while matching LED turn signals keep your intentions clear from every angle.
HARLEY-DAVIDSON REVEALS SELECT NEW 2026 MOTORCYCLES SHIPPING SOON TO WORLDWIDE AUTHORIZED DEALERSHIPS
MILWAUKEE – Harley-Davidson reveals selected new models from its 2026 motorcycle line up. These exciting motorcycles will be available soon at authorized Harley-Davidson dealerships globally.
Additional 2026 Harley-Davidson motorcycle models, including the limited-production Custom Vehicle Operation (CVO) collection, will be revealed in early 2026.
For 2026, the unmatched Harley-Davidson riding experience is more attainable than ever with the introduction of a Solo Trim Package for three popular models. Each model features a solo seat, Dark Billiard Gray paint, and cast aluminum wheels. The Solo Trim Package is available for the Heritage Classic ($19,999*), Street Bob ($14,999*), and the Street Glide models ($24,999*).
The additional 2026 Harley-Davidson models announced today are:
- The Street Glide and Road Glide Models: From the company that created the cross-country experience, these Grand American Touring models are optimized for customers who prioritize luxury, performance and long-haul comfort.
- The Low Rider S, Low Rider ST, Heritage Classic, Breakout, Fat Boy, and Street Bob Models:The diverse line of Harley-Davidson Cruiser motorcycles includes six very distinctive models, each presenting a specific stylistic personality, from nostalgic to high performance to boldly custom. Each model features the full suite of Rider Safety Enhancements by Harley-Davidson and the Milwaukee-Eight 117 powertrain, but in three unique tunes – with differences in intake and exhaust, cam profiles, and ride mode programming – to offer performance that matches the personality of each Cruiser model.
- The Sportster S, Nightster Special, and Nightster Models:Extraordinary performance and advanced technology combine to deliver a dynamic riding experience with styling inspired by Harley-Davidson heritage for these Sport motorcycles. The Revolution Max motor on these models features new engine covers offering an enhanced custom look. And a new option package for the Nightster model features bold Blood Orange paint with graphics inspired by Harley-Davidson flat track race bikes, plus chrome exhaust shields and 14-spoke cast aluminum wheels. Sport models will reach authorized Harley-Davidson dealerships globally in early 2026.
- The Pan America 1250 Special, and Pan America 1250 ST Models: Adventure Touring is for riders who turn touring into detouring. The award-winning Pan America 1250 Special motorcycle is a versatile, technologically advanced motorcycle designed to give its rider the confidence to explore a variety of on- and off-pavement routes. The Pan America 1250 ST model is tuned for nimble sport-touring pavement performance withpremium suspension and braking components, 17-inch wheels shod with performance tires and a quickshifter. Adventure Touring models will reach authorized Harley-Davidson dealerships globally in early 2026.
*Available only from dealers in the United States.
2026 Harley-Davidson Breakout Totalmotorcycle.com Features and Benefits
Leave Subtle to Somebody Else.
With a long 34 degrees of rake, a wide 240mm rear, and a tall 21” up front, the 2026 Breakout is built to look as confident as it feels. And a 117 Milwaukee-Eight Custom motor, performance-tuned exhaust, ride modes, and rider safety enhancements make sure it rides even meaner than it looks.
5.75” LED Headlamp + LED Turn Signals
Bright, clean, and impossible to ignore. A 5.75” LED headlamp lights your line, while matching LED turn signals keep your intentions clear from every angle.
Boldly Profiled 240mm Rear Tire
A massive 240mm rear tire plants the Breakout’s stance and delivers confidence that feels as solid as it looks.
34 Degrees of Pure Chopper Stance
That raked-out front end is a defining part of the Breakout silhouette and a nod to its custom heritage. It’s stretched and ready to stand apart from the factory.

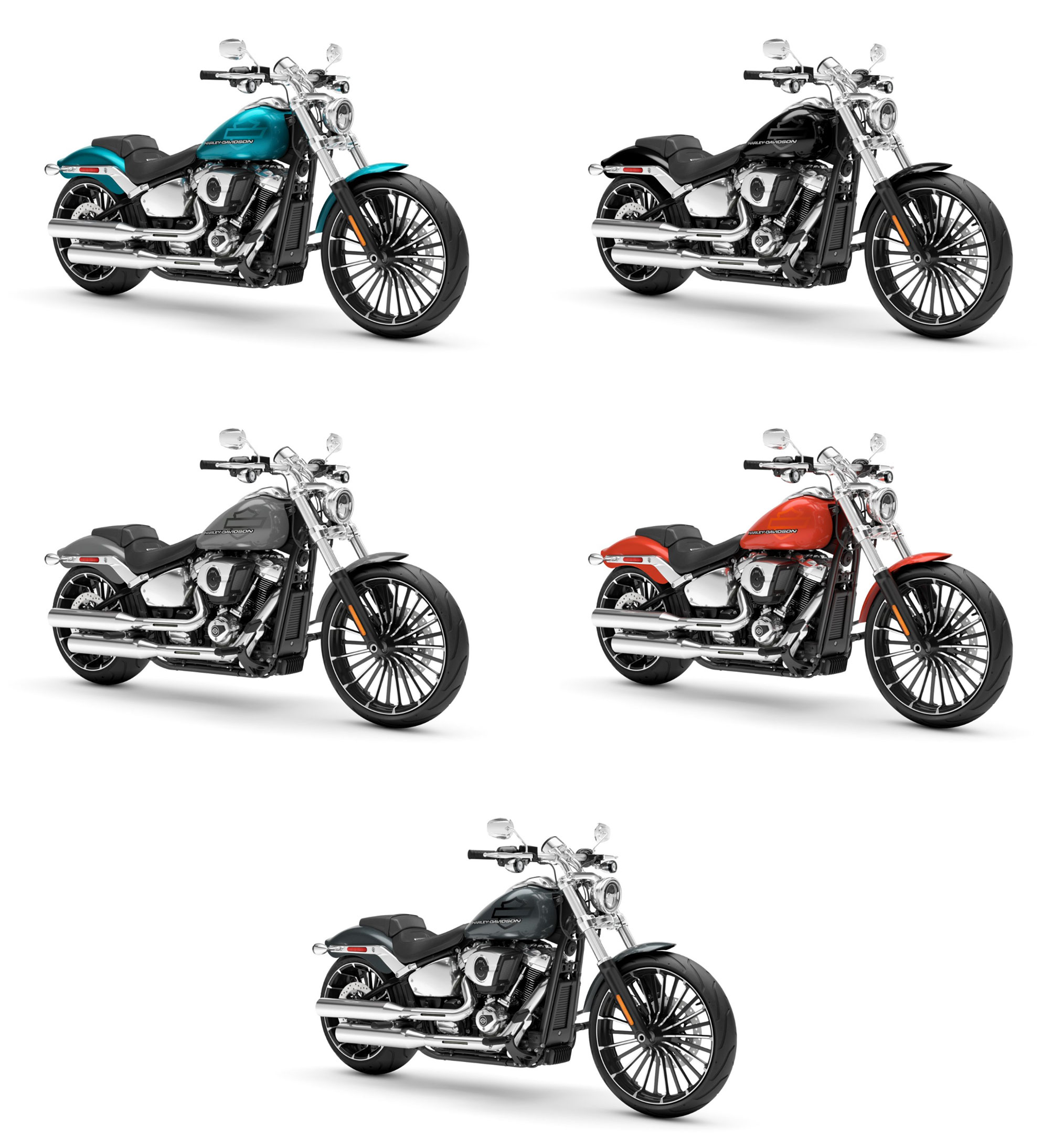

Paint + Graphics Worthy of a Legend
The 2026 Breakout turns heads before the motor even fires, thanks to two new factory finishes: Blood Orange and Teal Thunder. They join Vivid Black, Dark Billiard Gray, and Iron Horse Metallic, each one bold enough to wear the Breakout name.
Big-Inch Milwaukee-Eight 117 Custom Motor
The most displacement you can get in a factory-installed, regular-production Harley-Davidson powertrain. Torque-rich, smooth-running, and made to move.
Punchy 2-Into-2 Exhaust
Classic cruiser lines meet high-flow performance. The 2-into-2 exhaust and Touring Intake feed and free the Milwaukee-Eight 117 motor, giving it the breathing room to rip at its full potential.
Performance-Tuned Suspension
Suspension dialed for comfort and long-haul performance makes the Breakout ride as smooth as it looks, without softening its attitude.
300mm Front Disc + 21” Wheel
A single 300mm disc brake delivers confident stopping power while keeping the lines clean on that tall, bold 21” front wheel.
4” Analog Gauge + Customizable Ride Modes
A clean 4-inch analog gauge with a built-in digital display delivers the info you need without clutter, keeping the view as sharp as the rest of the Breakout. Road, Rain, and Sport ride modes adjust throttle response and traction settings to match how and where you ride, giving you quick tuning that keeps it feeling exactly the way you want.
USB-C Charging to Get You There
USB-C charging comes standard, ready to keep your essentials powered from the first stop to the last. Because even a bike that owns the spotlight knows when to share a little juice.
Ride-Focused Rider Safety Enhancements
Straight Line & Cornering ABS, Straight Line & Cornering Traction Control, Straight Line & Cornering Drag-Torque Slip Control (C-DSCS), and TPMS come standard. It works in the background so you can focus on the ride.
Ergonomic Adjustable Brake Lever
Fine-tune lever reach for better control, whether you’re wearing thicker gloves or just dialing it to fit your style.
Harley-Davidson’s Rider Safety Enhancements is all about giving you that extra peace of mind when things get a little unpredictable. It’s a set of smart tech that steps in during tricky situations, helping the bike handle traction while you’re accelerating, braking, or slowing down. With the Cornering Rider Safety Enhancements, the bike even adjusts for cornering, keeping things smooth and steady without you having to think twice.
Anti-lock Brake System (ABS)
ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
Traction Control System (TCS)
The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
Drag-Torque Slip Control System (DSCS)
DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
Tire Pressure Monitoring System (TPMS)
TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
Cornering Enhanced Anti-lock Brake System (C-ABS)
C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
Cornering Enhanced Traction Control System (C-TCS)
C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
Cornering Drag-Torque Slip Control System (C-DSCS)
On bikes equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel bike is leaning or the side-to-side motion on a Trike.
2026 Harley-Davidson Breakout – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $22,999 USD
Canada MSRP Price: from $27,999 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
Dimensions
Length
93.5 in.
Width
37 in.
Seat Height, Laden +
25.6 in.
Ground Clearance
4.5 in.
Rake
34
Trail
5.7 in.
Wheelbase
66.7 in.
Tire, Type
Michelin Scorcher 11, front and rear
Tires, Front Specification
130/60B21,63H,BW
Tires, Rear Specification
240/40R18,79V,BW
Fuel Capacity
5 gal.
Oil Capacity (w/filter)
5 qt.
Weight, In Running Order
681 lb.
Engine
Engine+
Milwaukee-Eight 117 Custom
Bore
4.075 in.
Stroke
4.5 in.
Displacement
117 cu in.
Compression Ratio
10.3:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler
Performance
Engine Torque Testing Method
J1349
Engine Torque+
126 ft-lbs
Engine Torque (rpm)
3000
Horsepower
103 HP / 77 kW @ 4800 rpm
Lean Angle, Right (deg.)
26.8
Lean Angle, Left (deg.)
26.8
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy+
49 mpg
Drive Train
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Chassis
Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Wheels, Front Type+
Gloss black, 26-spoke cast aluminum
Wheels, Rear Type+
Gloss black, 26-spoke cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear black, Split 7-spoke floating rotors
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals+
Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
4-inch analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer
2026 Harley-Davidson Breakout – Totalmotorcycle.com Canada Specifications/Technical Details
Dimensions
Length
2,375 mm
Width
940 mm
Seat Height, Unladen
665 mm
Ground Clearance
115 mm
Rake
34
Trail
145 mm
Wheelbase
1,695 mm
Tire, Type
Michelin™ Scorcher 11, front and rear
Tires, Front Specification
130/60B21,63H,BW
Tires, Rear Specification
240/40R18,79V,BW
Fuel Capacity
18.9 l
Oil Capacity (w/filter)
4.7 l
Weight, In Running Order
309 kg
Engine
Engine+
Milwaukee-Eight™ 117 Custom
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1,923 cc
Compression Ratio
10.3:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler
Performance
Engine Torque Testing Method
J1349
Engine Torque+
171 Nm
Engine Torque (rpm)
3000
Horsepower
103 HP / 77 kW @ 4800 rpm
Lean Angle, Right (deg.)
26.8
Lean Angle, Left (deg.)
26.8
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy+
5.5 l/100 km
Drive Train
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Chassis
Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Wheels, Front Type+
Gloss black, 26-spoke cast aluminum
Wheels, Rear Type+
Gloss black, 26-spoke cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear black, Split 7-spoke floating rotors
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
102 mm analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer
2026 Harley-Davidson Breakout – Totalmotorcycle.com Europe Specifications/Technical Details
Dimensions
Length
2,375 mm
Width
940 mm
Seat Height, Unladen
665 mm
Ground Clearance
115 mm
Rake
34
Trail
145 mm
Wheelbase
1,695 mm
Tire, Type
Michelin™ Scorcher 11, front and rear
Tires, Front Specification
130/60B21,63H,BW
Tires, Rear Specification
240/40R18,79V,BW
Fuel Capacity
18.9 l
Oil Capacity (w/filter)
4.7 l
Weight, In Running Order
309 kg
Engine
Engine+
Milwaukee-Eight™ 117 Custom
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1,923 cc
Compression Ratio
10.3:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler
Performance
Engine Torque Testing Method
EC 134/2014
Engine Torque+
168 Nm
Engine Torque (rpm)
3000
Horsepower
103 HP / 77 kW @ 5020 rpm
Lean Angle, Right (deg.)
26.8
Lean Angle, Left (deg.)
26.8
Fuel Economy Testing Method
EU 134/2014
Fuel Economy+
5.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
128 g/km CO2
Drive Train
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Chassis
Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Wheels, Front Type+
Gloss black, 26-spoke cast aluminum
Wheels, Rear Type+
Gloss black, 26-spoke cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear black, Split 7-spoke floating rotors
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals
Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
102 mm analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
