Punchy Milwaukee-Eight 117 Custom Motor. The Milwaukee-Eight 117 feeds the Fat Boy exactly what it was built for: big torque and roll-on power that turns its solid, planted stance into something that moves with surprising quickness.
Review – Key Features – Features & Benefits – Specifications
2026 Harley-Davidson Fat Boy: BOLD BY DESIGN.
Introducing the 2026 Harley-Davidson Fat Boy…
If blending in is your style, the 2026 Fat Boy isn’t the bike for you. Its iconic chrome headlight nacelle, bold lines, and one-of-a-kind stance turn every arrival into something worth noticing.
Built in the Image of Bold
Wide tires front and back. Classic Lakester cast aluminum wheels. The iconic steamroller stance, backed by a Milwaukee-Eight® 117 motor. LED lighting all around, Rider Safety Enhancements standard, and fine factory details that honor one of Harley-Davidson’s most legendary silhouettes. The 2026 Fat Boy is bold by design.
“Every time I park it, I catch myself looking back at it. I’ve never done that with any other bike I’ve owned, but there’s something about the Fat Boy that makes you want to take it in for a second before you walk away.
2026 Harley-Davidson Fat Boy Totalmotorcycle.com Key Features
- 103 HP Horsepower
- 25.9 in. Seat Height, Laden
- 126 ft-lbs Engine Torque
- 47 mpg Fuel Economy
Punchy Milwaukee-Eight 117 Custom Motor
The Milwaukee-Eight 117 feeds the Fat Boy exactly what it was built for: big torque and roll-on power that turns its solid, planted stance into something that moves with surprising quickness.
Airflow-Optimized Touring Intake
Designed to move more air through the Milwaukee-Eight 117, the Touring Intake helps maintain steady power and smooth throttle response mile after mile.
Classic Machined Lakester Wheels
Solid Lakester cast aluminum wheels, paired with wide front and rear tires, give the Fat Boy its unmistakable steamroller stance and planted look from every angle.
Ride-Ready Hand Control
With a thumb’s flick, you’ve got more command than ever. Switch between Road, Rain, and Sport modes on the fly, set cruise control when the highway stretches out, and trust built-in Rider Safety Enhancements — Cornering ABS, Traction Control, Drag-Torque Slip Control, and TPMS — to hold the line so you can focus on what’s in front of you.

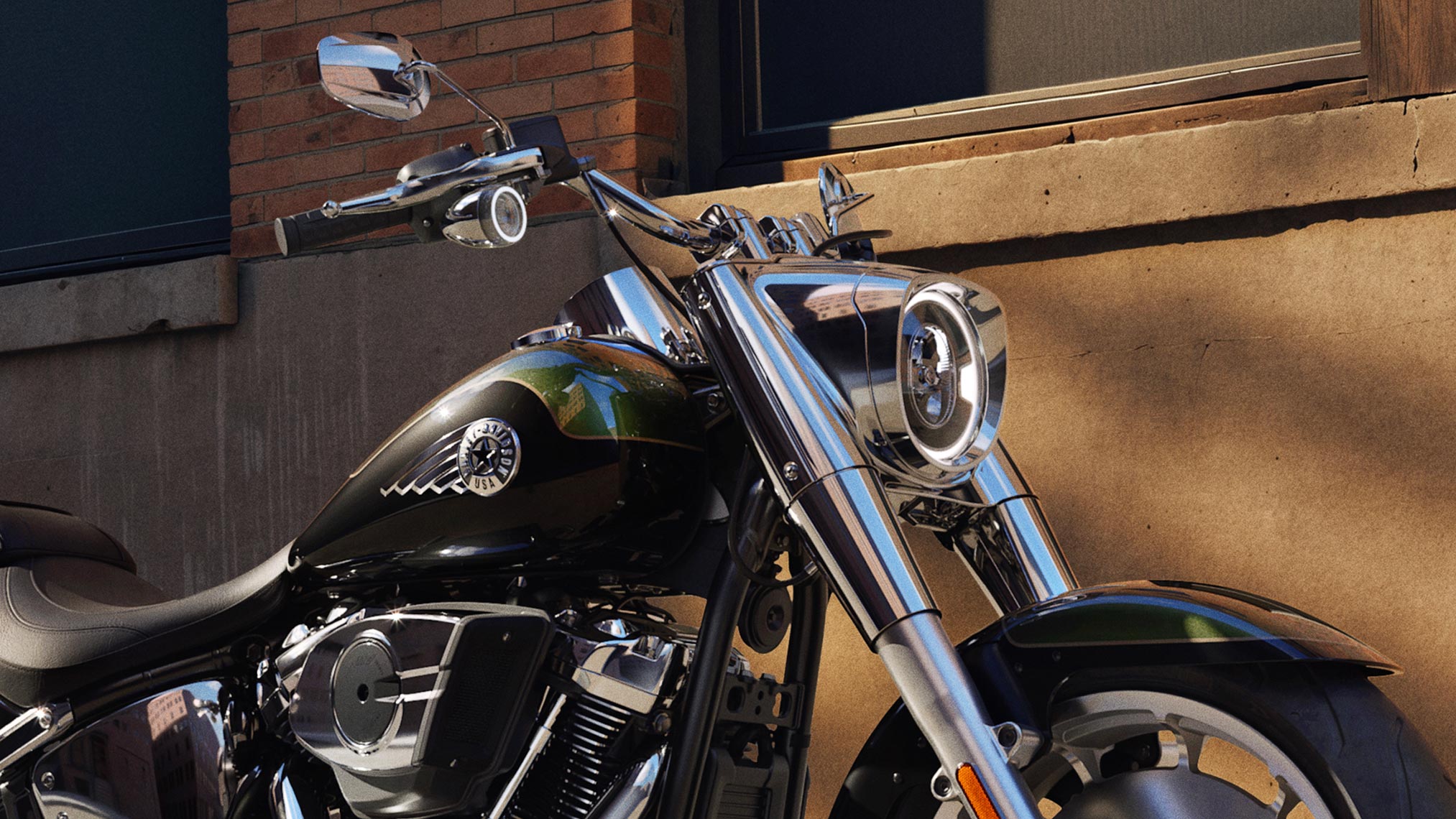

Signature Headlamp Nacelle + LED Lighting All Around
A sculpted chrome nacelle frames the front end of the Fat Boy, lit by a powerful 7″ LED headlamp. Bright LED signals complete the bike’s all-around LED lighting package, blending timeless style with modern visibility. It’s a classic face, sharpened through a modern lens.
HARLEY-DAVIDSON REVEALS SELECT NEW 2026 MOTORCYCLES SHIPPING SOON TO WORLDWIDE AUTHORIZED DEALERSHIPS
MILWAUKEE – Harley-Davidson reveals selected new models from its 2026 motorcycle line up. These exciting motorcycles will be available soon at authorized Harley-Davidson dealerships globally.
Additional 2026 Harley-Davidson motorcycle models, including the limited-production Custom Vehicle Operation (CVO) collection, will be revealed in early 2026.
For 2026, the unmatched Harley-Davidson riding experience is more attainable than ever with the introduction of a Solo Trim Package for three popular models. Each model features a solo seat, Dark Billiard Gray paint, and cast aluminum wheels. The Solo Trim Package is available for the Heritage Classic ($19,999*), Street Bob ($14,999*), and the Street Glide models ($24,999*).
The additional 2026 Harley-Davidson models announced today are:
- The Street Glide and Road Glide Models: From the company that created the cross-country experience, these Grand American Touring models are optimized for customers who prioritize luxury, performance and long-haul comfort.
- The Low Rider S, Low Rider ST, Heritage Classic, Breakout, Fat Boy, and Street Bob Models:The diverse line of Harley-Davidson Cruiser motorcycles includes six very distinctive models, each presenting a specific stylistic personality, from nostalgic to high performance to boldly custom. Each model features the full suite of Rider Safety Enhancements by Harley-Davidson and the Milwaukee-Eight 117 powertrain, but in three unique tunes – with differences in intake and exhaust, cam profiles, and ride mode programming – to offer performance that matches the personality of each Cruiser model.
- The Sportster S, Nightster Special, and Nightster Models:Extraordinary performance and advanced technology combine to deliver a dynamic riding experience with styling inspired by Harley-Davidson heritage for these Sport motorcycles. The Revolution Max motor on these models features new engine covers offering an enhanced custom look. And a new option package for the Nightster model features bold Blood Orange paint with graphics inspired by Harley-Davidson flat track race bikes, plus chrome exhaust shields and 14-spoke cast aluminum wheels. Sport models will reach authorized Harley-Davidson dealerships globally in early 2026.
- The Pan America 1250 Special, and Pan America 1250 ST Models: Adventure Touring is for riders who turn touring into detouring. The award-winning Pan America 1250 Special motorcycle is a versatile, technologically advanced motorcycle designed to give its rider the confidence to explore a variety of on- and off-pavement routes. The Pan America 1250 ST model is tuned for nimble sport-touring pavement performance withpremium suspension and braking components, 17-inch wheels shod with performance tires and a quickshifter. Adventure Touring models will reach authorized Harley-Davidson dealerships globally in early 2026.
*Available only from dealers in the United States.
2026 Harley-Davidson Fat Boy Totalmotorcycle.com Features and Benefits
Make Your Entrance Everywhere
From its performance-tuned 117 motor and 2-into-2 exhaust to full LED lighting and retro-inspired tank medallion, the 2026 Fat Boy was made to make every lane its own. Ride modes and modern tech give you confidence without compromising what makes this bike unmistakably Fat Boy.

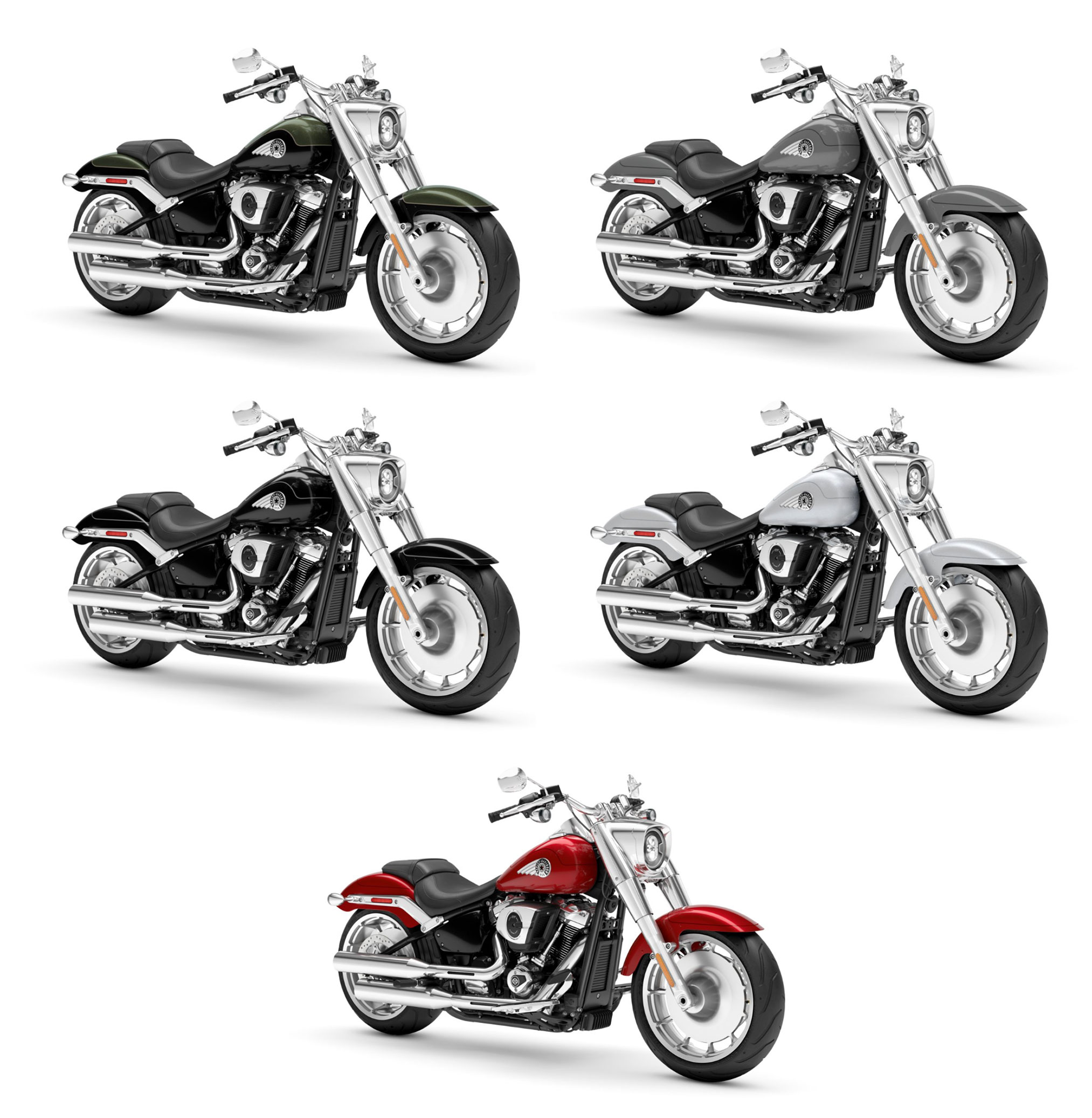

Bold Colorways + Model-Specific Tank Medallion
The 2026 Fat Boy gets a fresh shot of attitude with a Fat Boy-specific tank medallion and bold new Olive Steel Metallic two-tone, joining Dark Billiard Gray, Vivid Black, White Onyx Pearl, and Brilliant Red. It’s a lineup built to make an entrance, no matter which shade you choose
Classic Machined Lakester Wheels
Solid Lakester cast aluminum wheels, paired with wide front and rear tires, give the Fat Boy its unmistakable steamroller stance and planted look from every angle.
Signature Headlamp Nacelle + LED Lighting All Around
A sculpted chrome nacelle frames the front end of the Fat Boy, lit by a powerful 7″ LED headlamp. Bright LED signals complete the bike’s all-around LED lighting package, blending timeless style with modern visibility. It’s a classic face, sharpened through a modern lens.
Punchy Milwaukee-Eight 117 Custom Motor
The Milwaukee-Eight 117 feeds the Fat Boy exactly what it was built for: big torque and roll-on power that turns its solid, planted stance into something that moves with surprising quickness.
Performance-Tuned Front and Rear Suspension
Fine-tuned damping rates improve rider comfort, keeping the Fat Boy smooth and composed even on long stretches of open highway.
Torquey 2-Into-2 Exhaust
Dual exhaust pipes bring a balanced look to the bike’s profile and deliver the deep, throaty note only a Harley-Davidson can.
Airflow-Optimized Touring Intake
Designed to move more air through the Milwaukee-Eight 117, the Touring Intake helps maintain steady power and smooth throttle response mile after mile.
High-Vis 5″ Analog Gauge
The 5” analog gauge delivers essential ride data with a clean face, sharp detail, and a look that belongs on a bike as bold as the Fat Boy.
USB-C Charging That’s Always On
USB-C charging comes standard, adding modern function to the unapologetic style of the Fat Boy and keeping you powered up without slowing down.
Adjustable Brake Lever for Every Rider
Fine-tune your reach for better control and braking confidence.
Ride-Ready Hand Control
With a thumb’s flick, you’ve got more command than ever. Switch between Road, Rain, and Sport modes on the fly, set cruise control when the highway stretches out, and trust built-in Rider Safety Enhancements — Cornering ABS, Traction Control, Drag-Torque Slip Control, and TPMS — to hold the line so you can focus on what’s in front of you.
RIDER SAFETY ENHANCEMENTS
Harley-Davidson’s Rider Safety Enhancements is all about giving you that extra peace of mind when things get a little unpredictable. It’s a set of smart tech that steps in during tricky situations, helping the bike handle traction while you’re accelerating, braking, or slowing down. With the Cornering Rider Safety Enhancements, the bike even adjusts for cornering, keeping things smooth and steady without you having to think twice.
Anti-lock Brake System (ABS)
ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
Traction Control System (TCS)
The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
Drag-Torque Slip Control System (DSCS)
DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
Tire Pressure Monitoring System (TPMS)
TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
Cornering Enhanced Anti-lock Brake System (C-ABS)
C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
Cornering Enhanced Traction Control System (C-TCS)
C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
Cornering Drag-Torque Slip Control System (C-DSCS)
On bikes equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel bike is leaning or the side-to-side motion on a Trike.
2026 Harley-Davidson Fat Boy – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $22,599 USD
Canada MSRP Price: from $27,299 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
Dimensions
Length
93.1 in.
Width
40 in.
Seat Height, Laden +
25.9 in.
Ground Clearance
4.9 in.
Rake
30
Trail
4.1 in.
Wheelbase
65 in.
Tire, Type
Michelin® Scorcher 11, front and rear
Tires, Front Specification
160/60R18,70V,BW
Tires, Rear Specification
240/40R18,79V,BW
Fuel Capacity
5 gal.
Oil Capacity (w/filter)
5 qt.
Weight, In Running Order
694 lb.
Engine
Engine+
Milwaukee-Eight® 117 Custom
Bore
4.075 in.
Stroke
4.5 in.
Displacement
117 cu in.
Compression Ratio
10.3:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler
Performance
Engine Torque Testing Method
J1349
Engine Torque+
126 ft-lbs
Engine Torque (rpm)
3000
Horsepower
103 HP / 77 kW @ 4800 rpm
Lean Angle, Right (deg.)
25.6
Lean Angle, Left (deg.)
25.6
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy+
47 mpg
Drive Train
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Chassis
Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Wheels, Front Type+
Machined, Lakester cast aluminum
Wheels, Rear Type+
Machined, Lakester cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear silver, Split 7-spoke floating rotors
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals+
Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
5-inch analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
2026 Harley-Davidson Fat Boy – Totalmotorcycle.com Canada Specifications/Technical Details
Dimensions
Length
2,365 mm
Width
965 mm
Seat Height, Unladen
675 mm
Ground Clearance
125 mm
Rake
30
Trail
104 mm
Wheelbase
1,650 mm
Tire, Type
Michelin™ Scorcher 11, front and rear
Tires, Front Specification
160/60R18,70V,BW
Tires, Rear Specification
240/40R18,79V,BW
Fuel Capacity
18.9 l
Oil Capacity (w/filter)
4.7 l
Weight, In Running Order
315 kg
Engine
Engine+
Milwaukee-Eight™ 117 Custom
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1,923 cc
Compression Ratio
10.3:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler
Performance
Engine Torque Testing Method
J1349
Engine Torque+
171 Nm
Engine Torque (rpm)
3000
Horsepower
103 HP / 77 kW @ 4800 rpm
Lean Angle, Right (deg.)
25.6
Lean Angle, Left (deg.)
25.6
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy+
5.5 l/100 km
Drive Train
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Chassis
Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Wheels, Front Type+
Machined, Lakester cast aluminum
Wheels, Rear Type+
Machined, Lakester cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear silver, Split 7-spoke floating rotors
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
127 mm analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
2026 Harley-Davidson Fat Boy – Totalmotorcycle.com Europe Specifications/Technical Details
Dimensions
Length
2,365 mm
Width
965 mm
Seat Height, Unladen
675 mm
Ground Clearance
125 mm
Rake
30
Trail
104 mm
Wheelbase
1,650 mm
Tire, Type
Michelin™ Scorcher 11, front and rear
Tires, Front Specification
160/60R18,70V,BW
Tires, Rear Specification
240/40R18,79V,BW
Fuel Capacity
18.9 l
Oil Capacity (w/filter)
4.7 l
Weight, In Running Order
315 kg
Engine
Engine+
Milwaukee-Eight™ 117 Custom
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1,923 cc
Compression Ratio
10.3:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler
Performance
Engine Torque Testing Method
EC 134/2014
Engine Torque+
168 Nm
Engine Torque (rpm)
3000
Horsepower
103 HP / 77 kW @ 5020 rpm
Lean Angle, Right (deg.)
25.6
Lean Angle, Left (deg.)
25.6
Fuel Economy Testing Method
EU 134/2014
Fuel Economy+
5.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
128 g/km CO2
Drive Train
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Chassis
Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Wheels, Front Type+
Machined, Lakester cast aluminum
Wheels, Rear Type+
Machined, Lakester cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear silver, Split 7-spoke floating rotors
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals
Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
127 mm analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
