Designed for riders chasing every fraction of a second, it carries the same winning DNA that powered back-to-back 250SX East titles in AMA competition.
Review – Key Features – Features & Benefits – Specifications

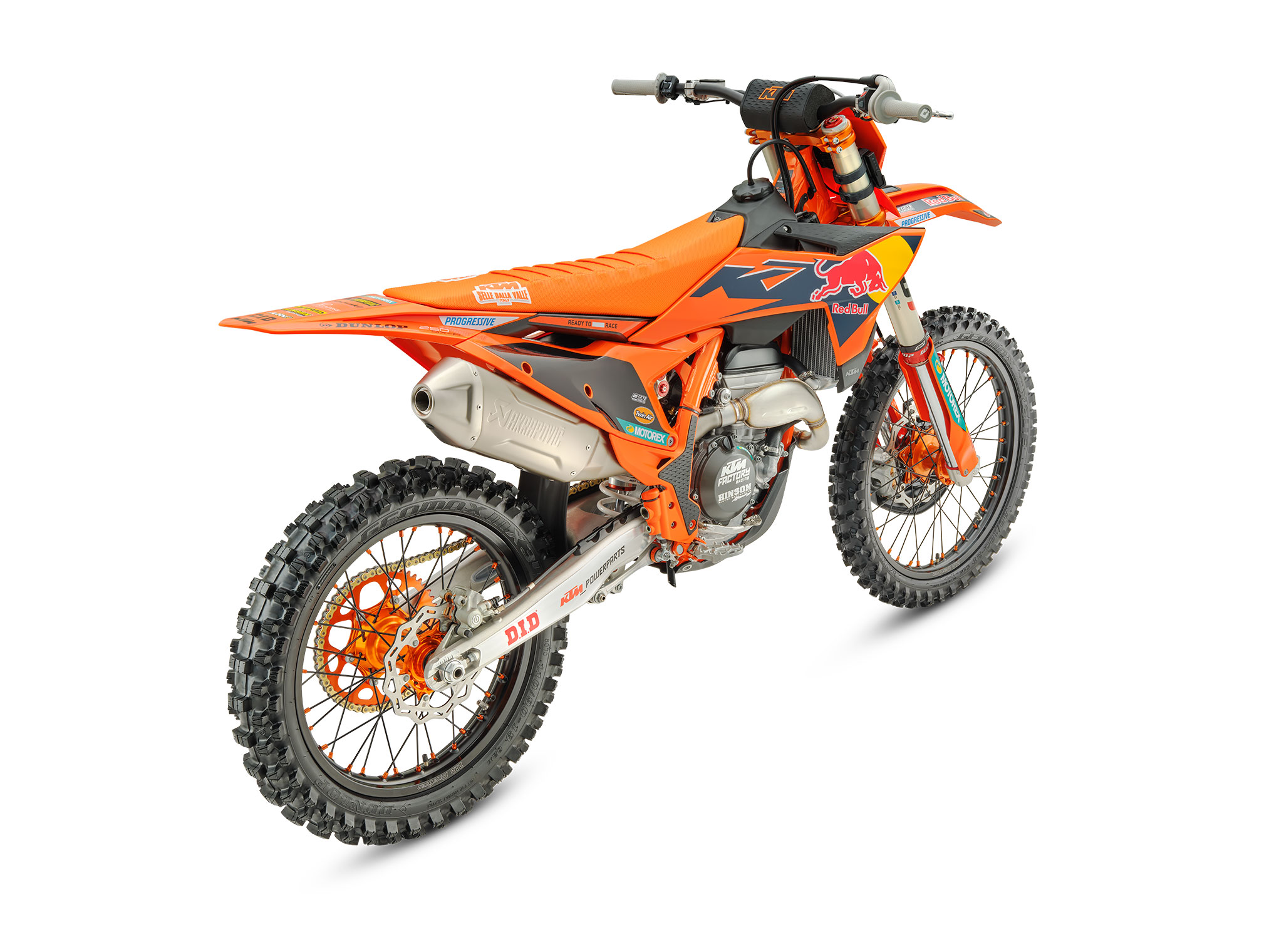

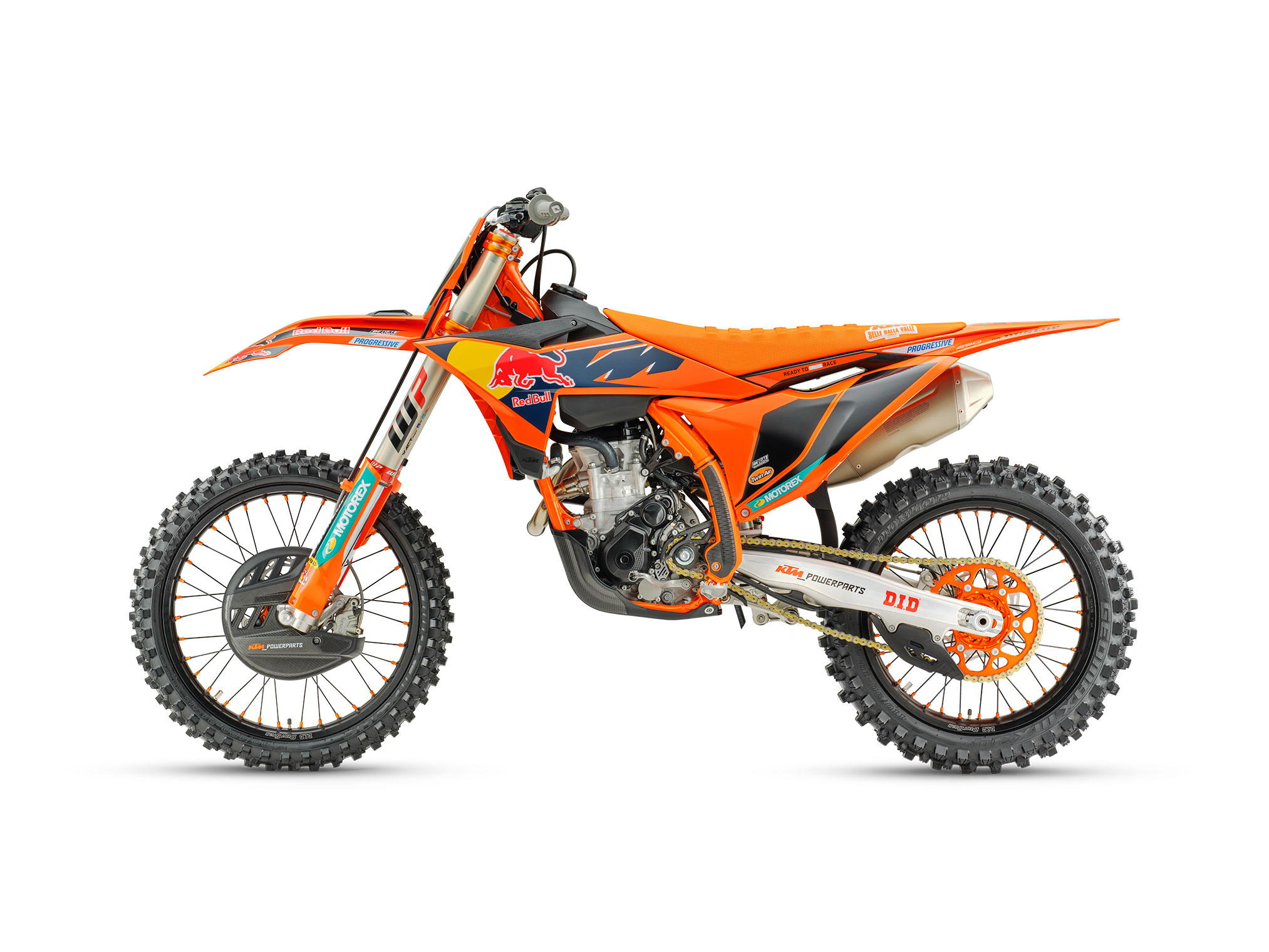

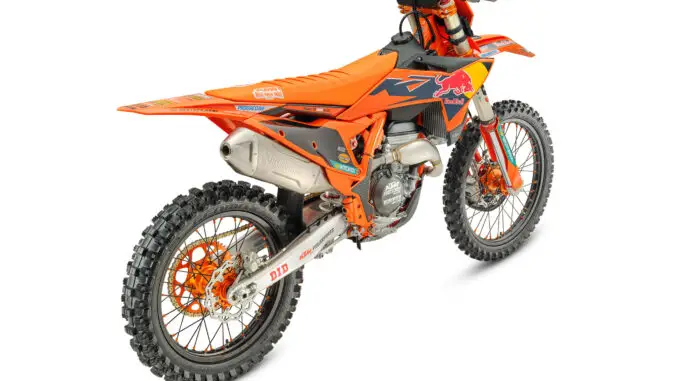

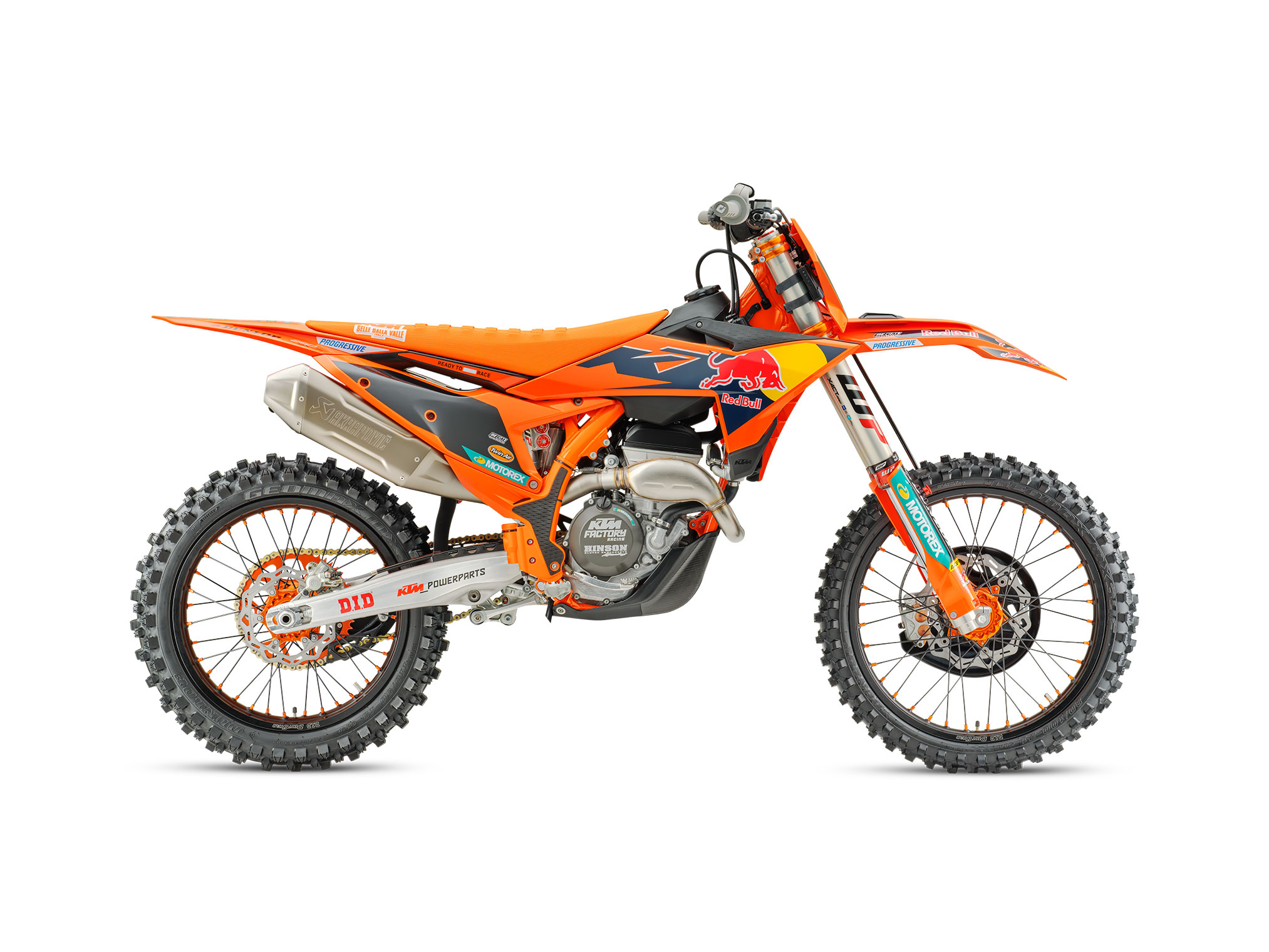

2026 KTM 250 SX-F Factory Edition: TEARING AHEAD.
Introducing the 2026 KTM 250 SX-F Factory Edition…
The 2026 KTM 250 SX-F FACTORY EDITION is a limited-production motocross machine built on championship-winning success. Engineered to bridge the gap between stock and factory performance, it delivers READY TO RACE capability with elite upgrades and race-proven components. For 2026, this includes the industry-leading WP XACT PRO 7548 front fork and WP XACT PRO 8950 rear shock fitted as standard. Designed for riders chasing every fraction of a second, it carries the same winning DNA that powered back-to-back 250SX East titles in AMA competition.
2026 KTM 250 SX-F Factory Edition Totalmotorcycle.com Key Features
- Red Bull KTM Factory Racing team graphics
- Frame with orange glossy finish
- Factory frame protectors (bi-composite orange/black)
- WP Pro Components XACT PRO 7548 front fork
- WP Pro Components XACT PRO 8950 shock
- WP factory start device
- Connectivity Unit Offroad (CUO) for tuning & ride analysis via KTMconnect
- Orange CNC Factory Racing triple clamps
- Black Engine mounts (incl. cut outs)
- Ribbed Selle Dalla Valle factory seat cover
- Gray, soft ODI lock-on grips
- Semi-floating front brake disc
- Factory carbon front brake disc guard
- Factory carbon skid plate
- Factory wheel set (black D.I.D DirtStar rim, black spokes, orange hubs and nipples)
- DUNLOP GEOMAX MX34 tires
- Orange rear sprocket
- Gold chain
- Akrapovic “Slip-On” line
- Hinson KTM Factory Racing outer clutch cover
THE BASE FOR THE BEST: 2026 KTM SX-F FACTORY EDITIONS ON A ROLL
Race fans will know that the Eli Tomac, Aaron Plessinger and Jorge Prado will be the bright names in orange for the 450SX and 450MX classes while Julien Beaumer will be a contender in the 250 divisions. The tools? The 2026 KTM 250 SX-F Factory Edition and KTM 250 SX-F FACTORY EDITION respectively.
Taking the exceptional and title-winning current platforms of the KTM 450 SX-F and KTM 250 SX-F – motorcycles that gathered main event victories in 2025 – the 2026 KTM SX-F FACTORY EDITIONs represent the ultimate competitive upscale.
What can customers expect beyond the ferocious power from the 47 hp and 63 hp mass-centralized, compact sub-27 kg engines? Also, the acute handling thanks to the light, hydro-formed, laser-cut and robot-welded frames with precision longitude and torsional flex, plus a polyamide reinforced aluminum 2-piece subframe and hollow, die-cast aluminum swingarm? Or how about race-bred detailing like CNC triple clamps, Brembo hydraulic clutch and Brembo brakes, ODI lock-on grips, wide, no-mud footrests, a Quickshifter, launch control and traction control? Not forgetting the Connectivity Unit Offroad (CUO) for even more set-up possibilities.
Answer? Firstly, the components and tuning of WP PRO COMPONENTS as standard. The revised hardware and settings of the WP XACT PRO 7548 front fork and WP XACT PRO 8950 shock mean a significant modification for durability and feeling in tune with the pinpoint ergonomics of the 2026 KTM SX-F FACTORY EDITIONs. This is the ultimate in suspension system technology, offering substantial possibilities for personalization and adjustment. The 48 mm fork has a unique cone valve system (shim-less) with a 310 mm stroke and 23 mm piston diameter. Riders, depending on their size and ability, can choose between 15 different spring rates, available at WP authorized centers. Compression, rebound and damping can be tweaked to the millimeter, and the CUO and the KTMconnect App can also help in this regard. Count on comfort, response and the best protection from ‘bottoming’. The shock has the same glut of options to prioritize traction and stability. It weighs just over 4 kg to minimize unsprung mass and works in succinct harmony with the fork and chassis behavior. In short, KTM is now offering ‘factory’ suspension in production trim and available to all.
Elsewhere improvements with the KTM SX-F FACTORY EDITIONs can be felt in practicality and resistance against the gnarliest of track conditions thanks to a new radiator closure (also making for easier access) and a freshly designed protection cap for the fuel line quick-lock system. Careful engineering with the airbox, air filter and fuel injection along with collaboration with partner Akrapovic means the 109-decibel noise level, FIM compliant, can be met with the remodeled titanium silencer without loss of the trademark KTM SX-F torque and power.
Finally, the finishing touches. KTM SX-F FACTORY EDITIONs would not be official without the very latest Red Bull KTM Factory Racing graphics and detailing. Choose from Tomac or Plessinger race numbers and smirk as the 2026 incarnations look the absolute ‘boss’ of any start gate. Other visual touches such as the orange 2026 FACTORY EDITION frame, black wheels, orange factory seat are the markers of class.
2026 KTM 250 SX-F Factory Edition Totalmotorcycle.com Features and Benefits
The KTM 250 SX-F FACTORY EDITION raises the bar with a factory-level suspension upgrade that redefines READY TO RACE performance. Fitted as standard with the WP XACT PRO 7548 front fork and WP XACT PRO 8950 rear shock, this exclusive setup delivers unmatched precision, comfort, and control. The 48 mm WP XACT PRO 7548 fork features a closed-cartridge design with a unique valve system and friction-optimized internals, offering pinpoint response, rock-solid bottoming resistance, and consistent damping lap after lap. On the rear, the WP XACT PRO 8950 shock incorporates Supertrax technology and a linked damping system to maximize traction, smooth out harsh impacts, and boost rider confidence in every section of the track.
2026 KTM 250 SX-F Factory Edition – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $ 12,599 USD
Canada MSRP Price: $15,949 CDN
Europe/UK MSRP Price: £11,399 GBP (On The Road inc 20% Vat)
Engine
Design
1-cylinder, 4-stroke engine
Displacement
249.9 cm³
Transmission
5-speed
Fuel-mixture generation
Keihin EFI, throttle body 44 mm
EMS
Keihin EMS
Clutch primary drive teeth
72
Primary drive
24:72
Clutch
Wet multi-disc DS clutch, Brembo hydraulics
Engine cylinder
Single cylinder
Engine stroke
4-Stroke
Chassis
Frame design
Central double-cradle-type 25CrMo4 steel
Front brake
Disc brake
Rear brake
Disc brake
Rear subframe design
Aluminium / Polyamide Glass Fiber
Chain
520, Non-sealed
Suspension
Front suspension
WP XACT PRO 7548
Rear suspension
WP XACT PRO 8950
Suspension travel (front)
300 mm
Suspension travel (rear)
300 mm
Front suspension adjustment
Compression and rebound adjustable
Rear suspension setting
Compression and rebound adjustable
Rear suspension addition
Preload adjuster
Dimensions
Seat height
958 mm
Ground clearance
343 mm
Tank capacity (approx.)
7.2 l
Weight (without fuel)
105 kg
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
